Wardrobe/Store Cupboard

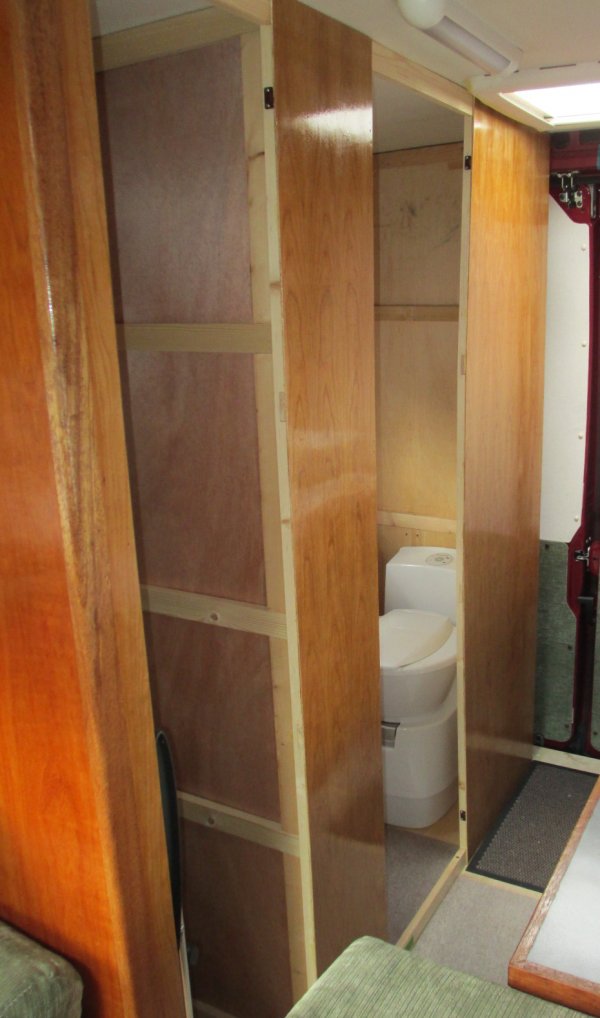

wardrobe front frame

The wardrobe front frame is an extension of the washroom front frame. The frame is fixed to the hardwood corner vertical on the left-hand panel with screws fitted into prepared holes in the frame.

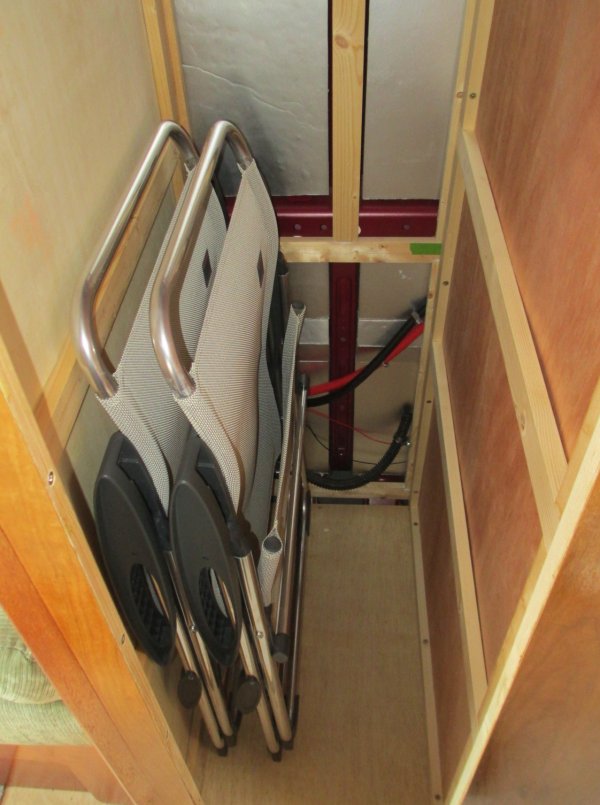

wardrobe right panel

The wardrobe right-hand panel, which also forms the washroom left-hand wall, is simply a 44x18mm softwood frame with 4mm plain ply screwed on one side.

The panel is fixed to the front frame, the floor, and to battens fixed on the van wall using screws fitted into prepared holes in the frame.



In order to save weight we have not lined the wardrobe frames on both sides with ply; the exposed battens on either side provide useful fixing points etc.

As this is work in progress the doors and back wall ply have yet to be fitted
